  • Parallel twin screw extruder

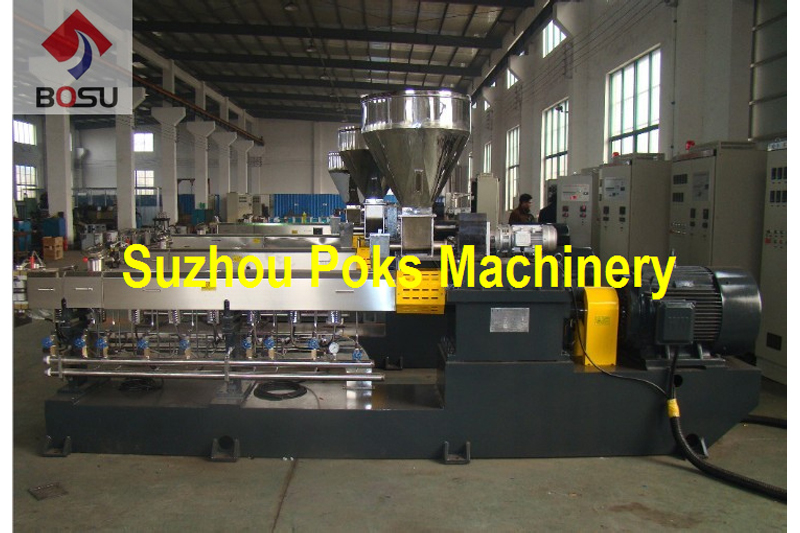

Parallel twin screw extruder

  • Update:2019-10-14 17:11:49
  • Category:
  • Model:
  • Price:
  • TAG:

INSTRUCTIONS

Parallel twin screw extruder use:
Parallel twin-screw extruder is particularly suitable for processing soft and hard PVC raw materials, and the powder can be directly extruded. At the same time, it can be equipped with different types of screws to produce pressure pipes, hot water pipes, corrugated pipes, hard PVC sheets, HDPE pipes, LDPE pipes , PP pipe PB pipe, soft PVC floor, cable material and ABS, transparent PVC sheet, composite PVC sheet, etc.

Features of parallel twin screw extruder:
1. The counter-rotating twin screw makes the material flow in an ∞ shape, which can meet the process requirements of material transportation, compression, mixing, exhaust, and plasticization.
2. The special oil temperature heating system in the screw core ensures the relative stability of the product quality.
3. The machine is designed with various types of screws and corresponding auxiliary machines to produce various pipes, profiles, pellets, etc.
4. The machine has advanced design, compact structure, excellent performance, beautiful appearance, stable rotation, low energy consumption, high output and long service life.

PARAMETER

Main technical parameters of parallel twin screw extruder:
  MODE
65×26
80×18
80×24
100×22
 Quantity of screws
2
2
2
2
 Diameter
65
80
80
100
 L/D ratio
26:1
18:1
24:1
22:1
 Rotationg direction
 Turing outwards with different direction
 Rotation speed
10-50
9.5-28.5
4.3-43
3.5-35
 Total torque
4.6
6.37
8.22
15
 Barrel heating Zones
4
4
7
4
  Heating power
20
17.4
27
18
 Oil cooling Zones
風(fēng)冷
3
3
3
 Droving power
22
7.3-22(AC.DC)
37
55(AC.DC)
 Max. output
180
160
280
400
 Appearance size(L×W×H)
3400×1140×2065
2900×810×1850
3460×1100×2315
4550×1350×2600
 Net weight(kg)
3000
2500
4900
5500
