  • Conical twin screw extruder

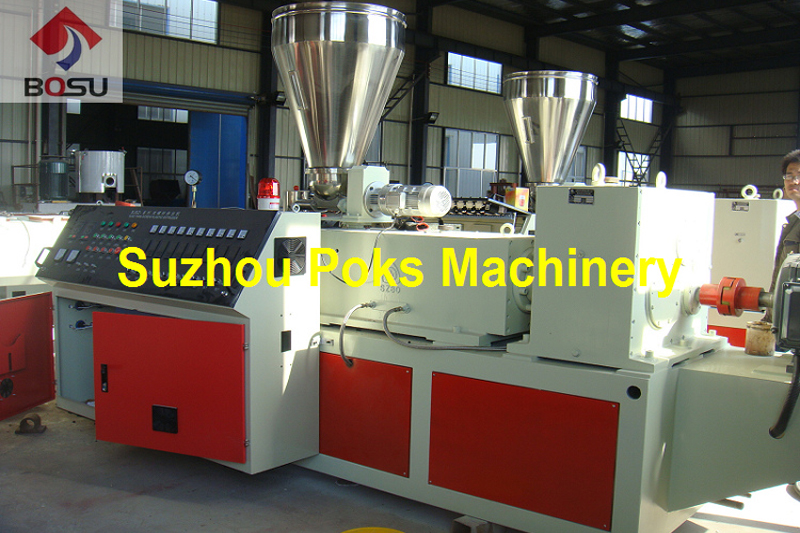

Conical twin screw extruder

  • Update：2019-10-14 17:12:59
  • Category：
  • Model：
  • Price：
  • TAG：

INSTRUCTIONS

Performance and structure of conical twin screw extruder:
SJSZ series conical twin-screw extruder, equipped with corresponding screws and auxiliary machines, can directly extrude various thermoplastics, especially hard polyvinyl chloride powder, into tubes, plates, sheets, films and special-shaped materials, etc. It can complete the modification of various plastics and the process of powder granulation.
The conical twin-screw extruder adopts DC motor, SCR stepless speed regulation, overload protection and fault alarm, screw core oil circulation constant temperature, barrel oil cooling, and is equipped with a vacuum exhaust pipe device and quantitative feeding Material device

PARAMETER

Main technical parameters of conical twin screw extruder:
  SPECIFICA\ MODE SJSZ-45 SJSZ-50 SJSZ-55 SJSZ-65 SJSZ-80 SJSZ-92
 Diameter of screws(mm) 45/90 50/105 55/110 65/132 80/156 92/188
 L/D 14.5 14.5 14.5 14.6 15.25 17.86
 Speed of screws 3-34 3-37 3-37 3.9-39 3.9-39 4-40
 Main motor(kw) 18.5 22 27 37 55 100
 Barrel heating power(kw) 15 10 18 28 38 70
 Production(kg/h) 100 120 150 260 400 800
 Centre height of machine(mm) 1000 1000 1000 1000 1000 1100
 Net weight(kg) 3000 3200 3500 4000 5000 7000
